Experiments

Description

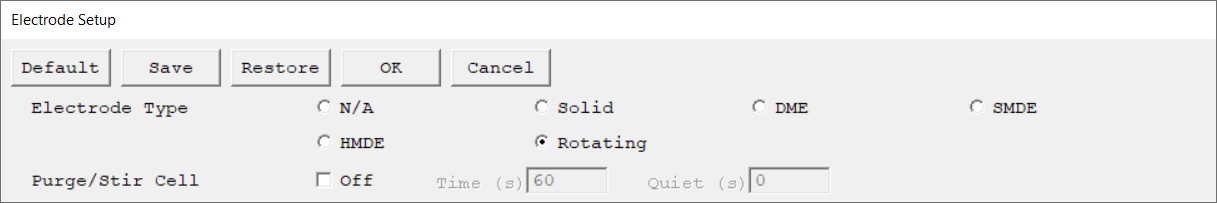

Set a specific electrode type or stir/purge conditions.

Parameter	Description	Units
Electrode Type	Select the electrode type for your instrument: •N/A (No special electrode) •Solid (Solid-type electrode) •DME (Dropping Mercury electrode) •SMDE (Static Mercury Drop electrode) •HMDE (Hanging Mercury Drop electrode) •Rotating (Rotating electrode)
Purge/Stir Cell	Enable or disable the purge/stir option if available on your Vista Shield™.

Parameter

Description

Units

Electrode Type

Select the electrode type for your instrument:

•N/A (No special electrode)

•Solid (Solid-type electrode)

•DME (Dropping Mercury electrode)

•SMDE (Static Mercury Drop electrode)

•HMDE (Hanging Mercury Drop electrode)

•Rotating (Rotating electrode)

Purge/Stir Cell

Enable or disable the purge/stir option if available on your Vista Shield™.

If you select a Rotating electrode, an additional setup window appears:

Parameter	Description	Units
Rotation Rate	Specify the Rotation Speed of the electrode.	revolutions per minute (rpm)
Output State when	Select the checkbox to stop the rotation at the end of the experiment.
