Description
Recover a parameter set from an auxiliary database on your computer.
Instead of entering setup parameters individually, use a pre-defined set of parameters with a specific Set Name. This is a keyword to define a set of system parameters, stored in a setup file with the file extension *.SET. More than one parameter set can be stored in each file, with each set distinguished by a Set Name.
This feature is especially useful when running repetitive tests and it is a powerful tool for organizing experimental setups. For example, different people in a lab can have their own setup files ("DILLY.SET", "ONESIE.SET", "OLLI.SET", etc.). Within the file, Dilly can save multiple parameter sets under descriptive Set Names ("CPC", "CV", "LSV", etc.).
Framework's Setup Save/Restore mechanism is used to save and recall parameter sets from the file. After entering your setup parameters in the setup window, click the Restore button to open the Restore Setup dialog box. Choose the setup file that contains the parameter sets and then select the Set Name within the file. Press Restore to confirm.

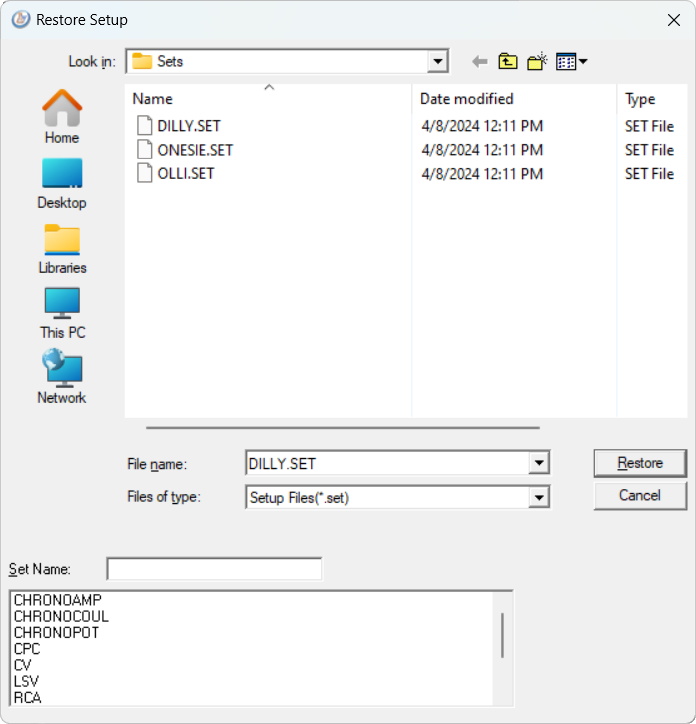

Restore Setup dialog box.
|
Make sure to specify a Set Name when restoring a setup file. |
