Description
The Set a Voltage utility is used to apply a voltage to an electrochemical cell and measure the current resulting from that voltage. This utility is used for basic tests that do not need the sophistication of Gamry’s applications software.
It creates a graph of current versus time with 60 seconds of data recorded at 0.5 second per data point. You can use the Set a Voltage function regardless of the instrument tier assigned to your Gamry Instruments potentiostat.
|
The displayed data cannot be saved for later analysis. |

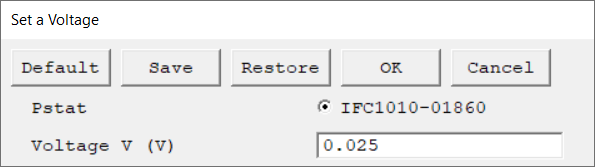

Run this utility by selecting Experiment > Utilities > Set a Voltage on the Framework™ menu bar. The Set a Voltage window opens:
Parameter |
Description |
Units |
||
|---|---|---|---|---|
Select the potentiostat/galvanostat to perform the experiment. Each radio button corresponds to an installed potentiostat. You can select only one potentiostat at a time. Potentiostats that are already in use are marked with an asterisk. They can be selected but cannot be used. |
|
|||
The constant voltage applied to the cell.
|
volts (V) |

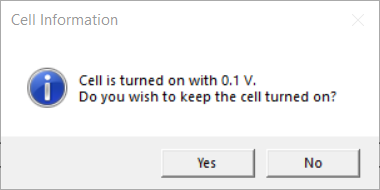

You can choose to leave the cell on and the voltage applied after the 60 seconds of data are done. After 60 seconds have elapsed, a Cell Information dialog box appears:
