Sequence Wizard > Commands

Description

Manage the electrodes settings for your experiment.

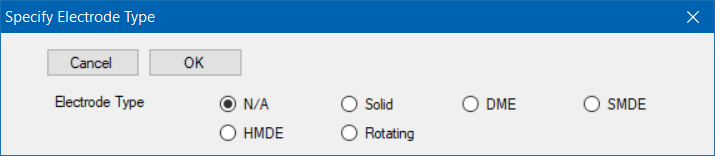

Select the electrode type used in the experiment:

Parameter

Description

Units

Electrode Type

Select the electrode type:

•N/A (No special electrode)

•Solid (Solid-type electrode)

•DME (Dropping Mercury electrode)

•SMDE (Static Mercury Drop electrode)

•HMDE (Hanging Mercury Drop electrode)

•Rotating (Rotating electrode)

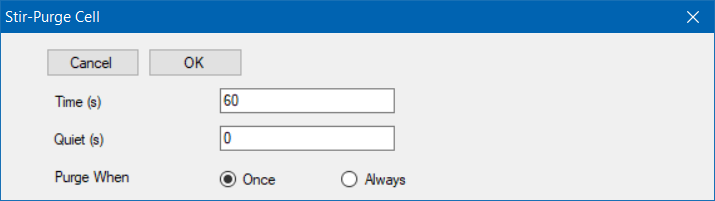

Enable or disable the purge/stir option if available on your Vista Shield™.

Parameter	Description	Units
Time	Set ON-time for stir/purge option.	seconds (s)
Quiet	Set OFF-time for stir/purge option.	seconds (s)
Purge When	Specify when the stir/purge option is used. Select Once to enable only once or Always to keep it enabled.

Set the rotation speed of your rotating electrode.

Parameter	Description	Units
Rotation Speed	Specify the Rotation Speed of the electrode.	revolutions per minute (rpm)
Turn Off Mode	Specify when to turn off the rotation. Select Always to fully disable electrode rotation, At End to turn rotation off at the end of the sequence, or Never to leave it on.
